Secondhand Plant Tools and Equipment

Snorkel Scissor Lift S3013 Mini - Berkshire

Description

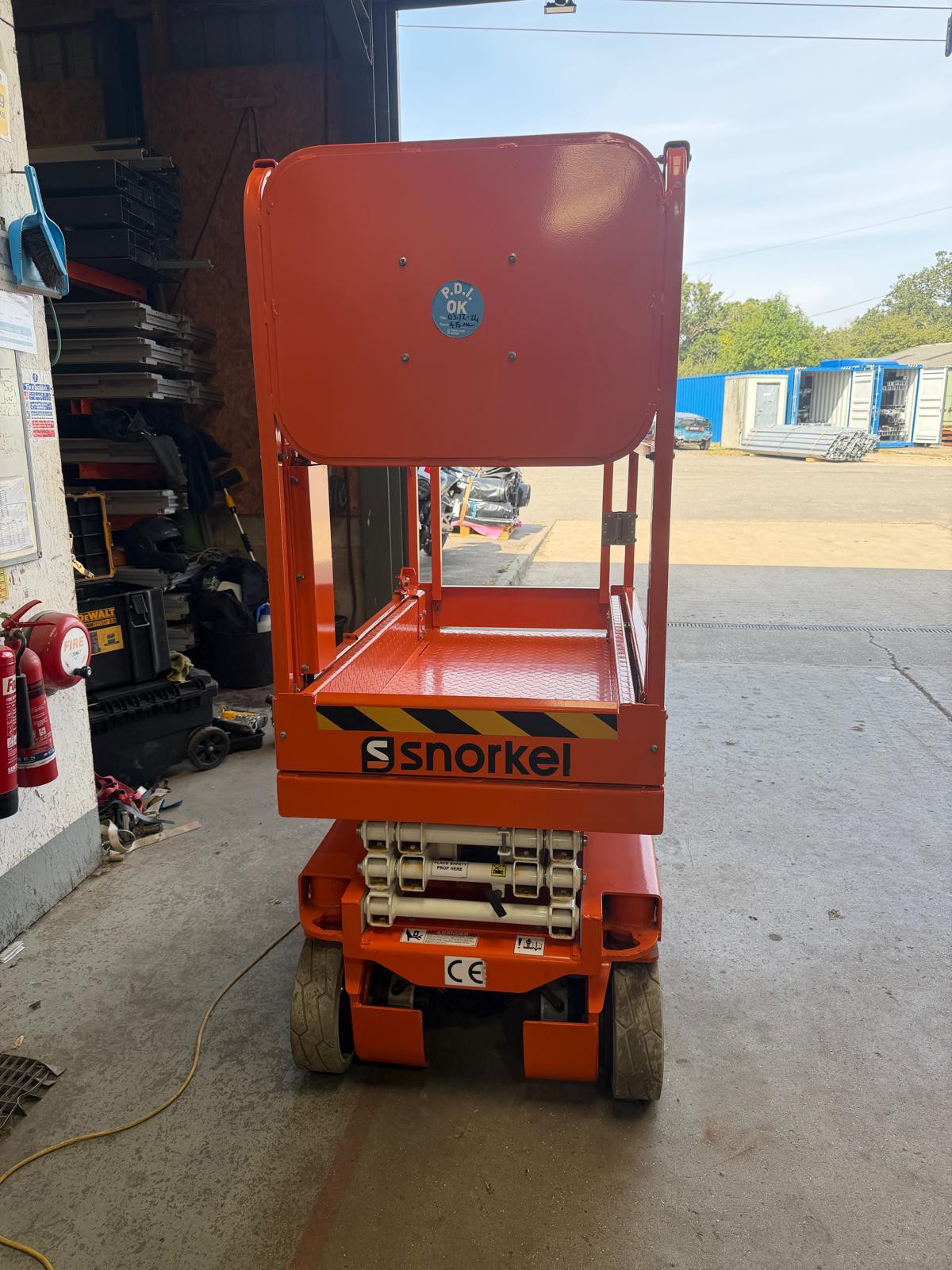

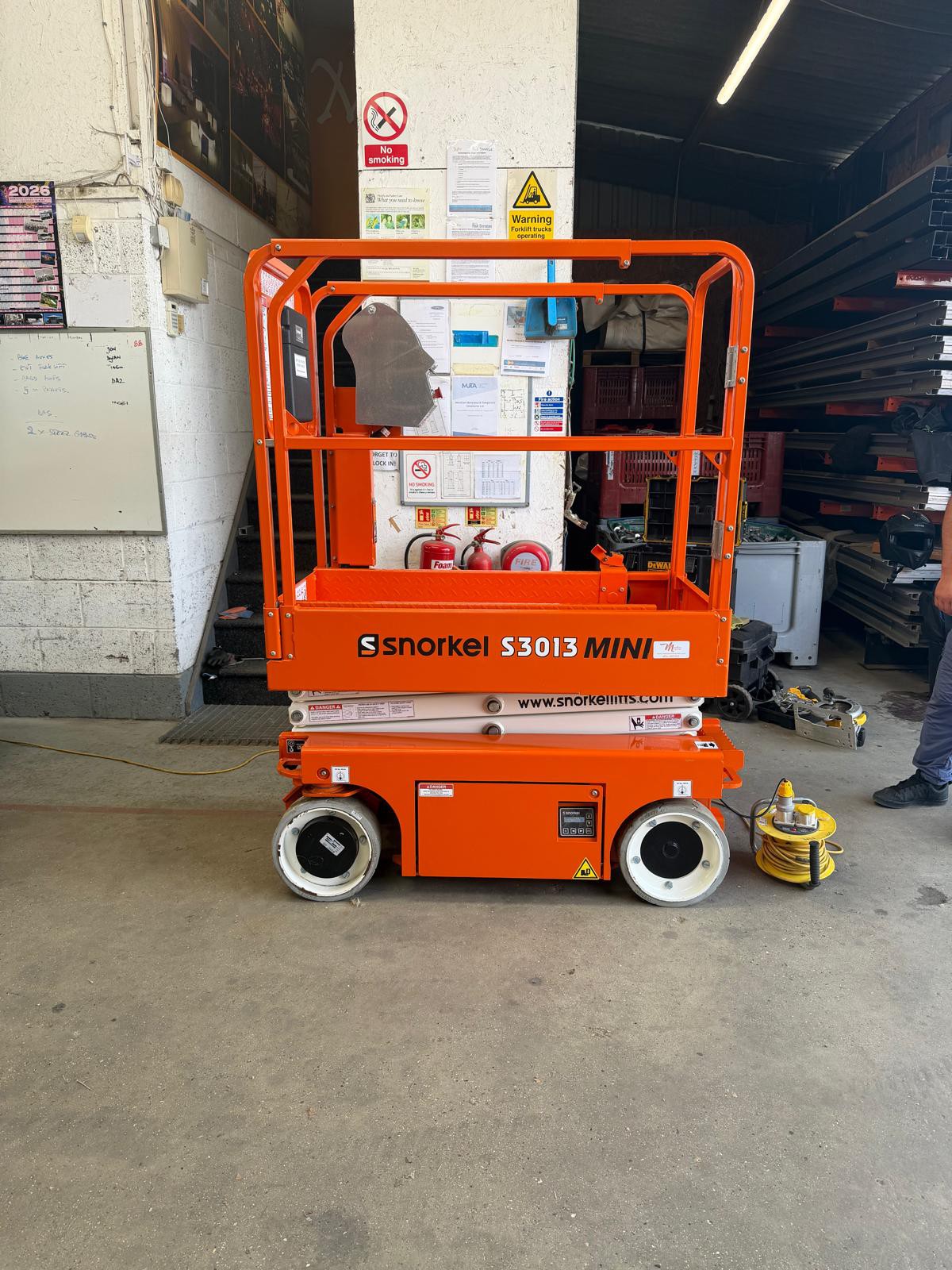

Snorkel S3013 Mini - Working Height 6m 2024 Electric Scissor lift

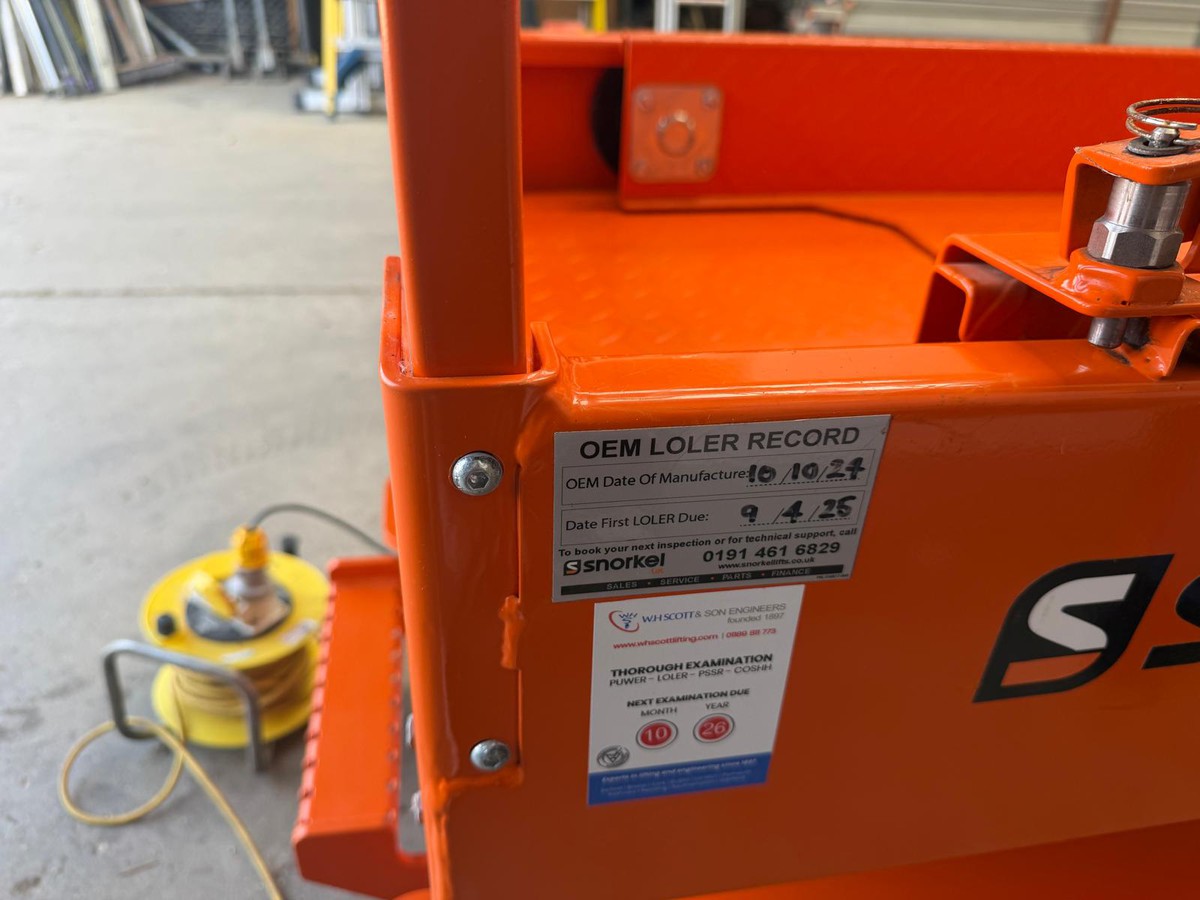

LOLA October 2026
Only 14 Hours On The Clock
Excellent Condition
Only selling as we require a larger one.

Makers info

Designed to address specific needs in the low-level scissor lift market, the S3013 Mini electric drive scissor lift is suitable for indoor and outdoor use and fits through a standard doorway. A roll-out deck extension and 600 lb maximum platform capacity make this model ideal for two people or one person plus materials. A deep-cycle 24V DC battery and non-marking solid rubber tires enable clean and quiet indoor use.

Snorkel S3013 Mini Specifications

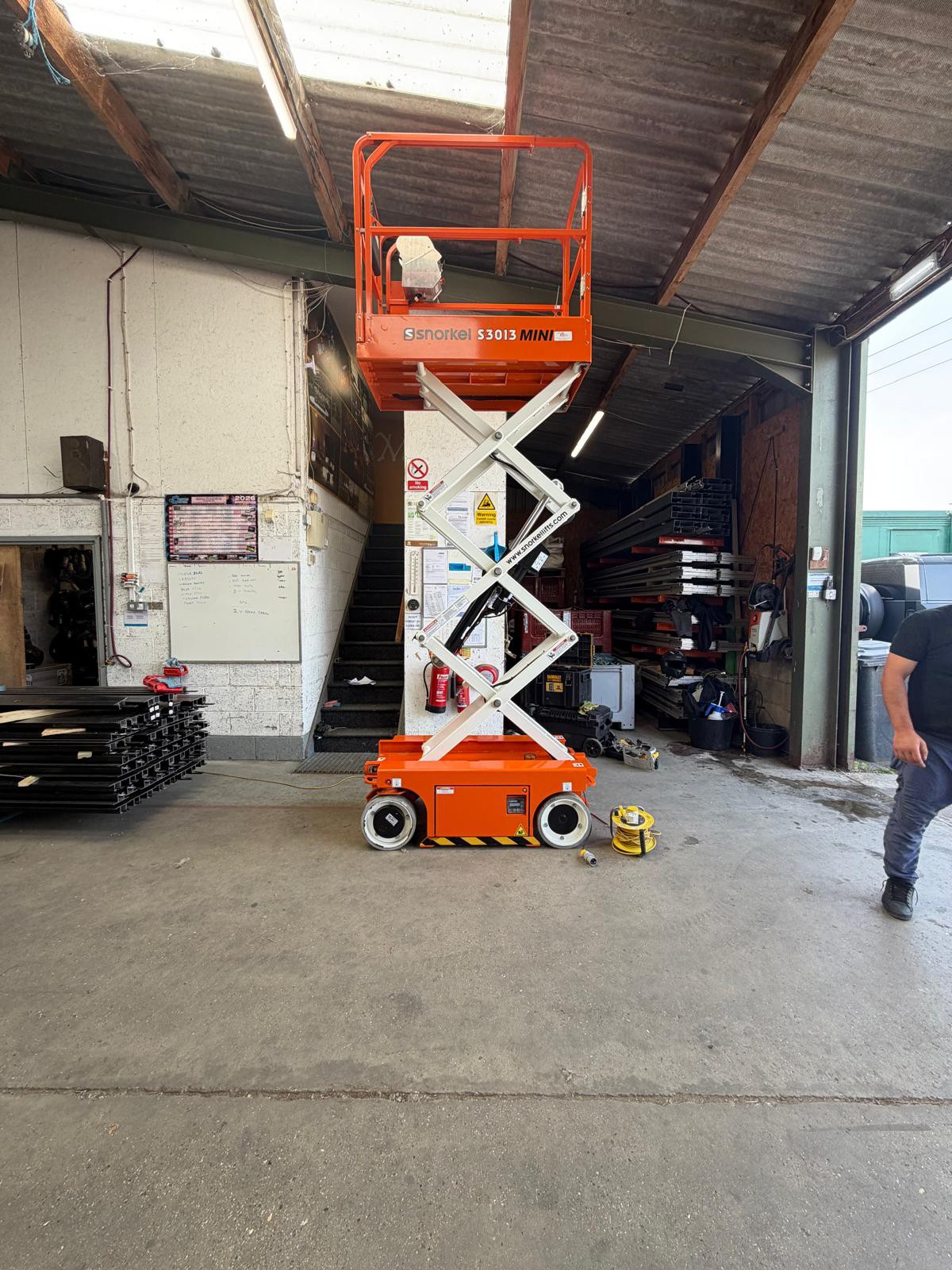

Max Working Height6m
Max Platform Height 4m
Platform Size (stowed) 0.74m x 1.32m
Platform Size (extended) 0.74m x 1.93m
Deck Extension Length 0.6m
Overall Length (with step) 1.44m
Overall Length (without step) 1.39m
Overall Width 0.76m
Stowed Height 1.85m
Min Height (guardrails folded) 1.59m
Ground Clearance (stowed) 0.06m
Ground Clearance (elevated) 0.016m
Platform Capacity (SWL) 273kg
Max Drive Height 4m
Max Wind Speed 12.5m/s
Max Drive Speed (stowed) 3.2km/h
Max Drive Speed (elevated) 0.6km/h
Raise/Lower Time 28 / 18 seconds
Gradeability 25%
Inside Turning Radius 0.49m
Outside Turning Radius 1.47m
Tyres 322.58mm x 101.6mm non-marking solid rubber

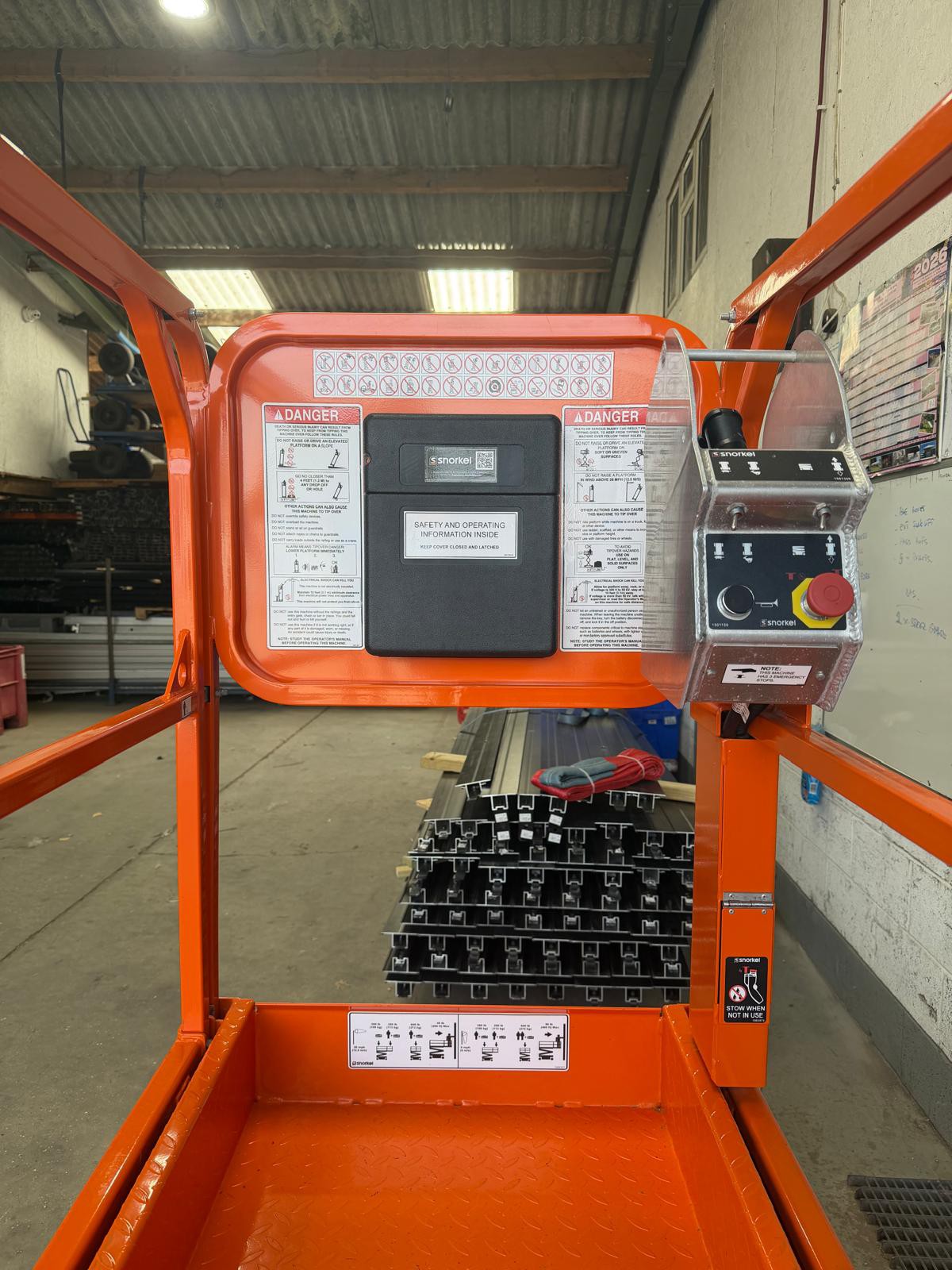

Controls Proportional
Drive System 2 wheel electric drive
Power Source 24V DC battery electric
Charger 90 – 240V, 25amp
Weight 794kg

Snorkel S3013 Mini Standard Features

Fully electric drive
Fully electric steer
Zero inside turning radius
No hydraulic hoses
Roll-out deck extension with dual locks
Non-marking tires
Swing-out service trays
Saloon-door style entry gates
Descent alarm
All motion alarm
2 persons indoors
1 person outdoors
Proportional controls, including descent
Power line to platform

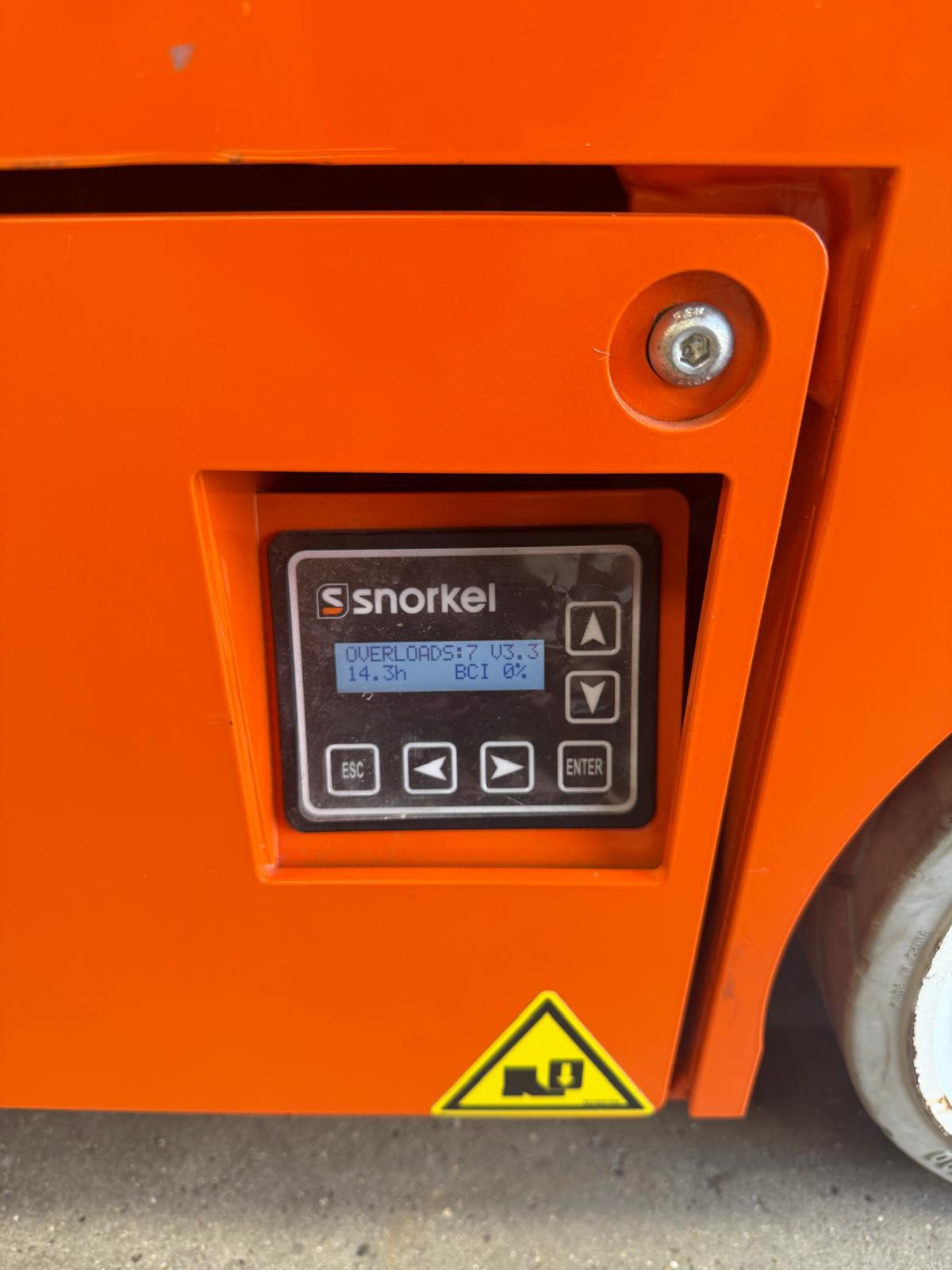

Hour meter & on-board diagnostics display
Integrated battery charger
Battery condition indicator
Platform overload system
Flashing amber strobe
ANSI A92.20 compliant
Largest tires / wheels in its class
Heavy-duty spindles and steering mechanism
Robust aluminum fixed control box
Crane & forklift points
Lanyard attachment points
